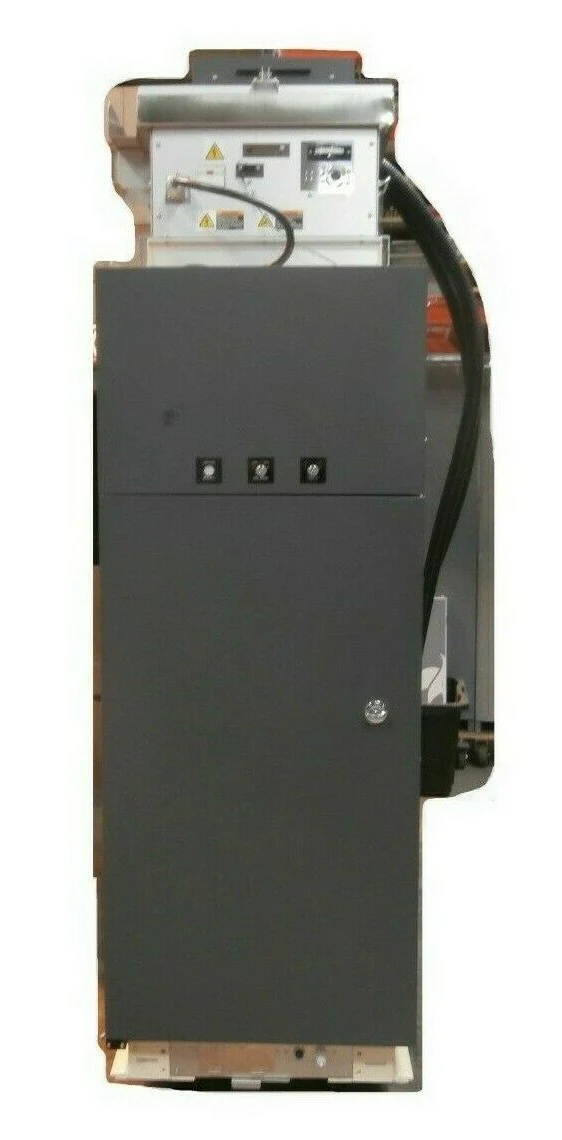

TEL Tokyo Electron IRAS Interface Block Robotic Arm Sub Lithius 5087-403675-12 Surplus
Model No: IRAS (LITHIUS IPL), XT-AXIS
Interface Block Robotic Arm Sub
Removed from a TEL Tokyo Electron Clean Track Lithius System
Installed Components
PCB Part No: MPC-T0048A-11, BOARD, IO MTR #02, TOB1048
PCB Part No: BOARD, CONN IL #02, HA-016
PCB Part No: BOARD, IF FN #01, HA-017
Daikin Industries FFU Part No: DFS410TC1B
Neurofine Part No: MMH4601000
Mitsubishi Industrial Robot and Track
Mitsubishi Industrial Robot Controller Part No: RC-1UHC-SAT07
Mitsubishi Capacitor Part No: MR-J2S-BC001-QE
Mitsubishi MELSERVO Driver Part No: MR-J2S-20A-PQ108T020, SVX
Mitsubishi MELSERVO Driver Part No: MR-J2S-20A-PQ108T021, SVY
Mitsubishi MELSERVO Driver Part No: MR-J2S-20A-PQ108T022, SVZ
Mitsubishi MELSERVO Driver Part No: MR-J2S-20A-PQ108T023, SVT
Parts List
Assembly Part No: 5087-403675-12, IRAS (LITHIUS IPL), XT-AXIS
5080-192610-11 BASE,FORK IRAS BU160C718G51 1
5080-193449-11 COVER(1),TOP BU223C499H01 1
5080-193448-11 COVER(2),TOP BU224D498H01 1
5080-193450-11 COVER(1),SIDE BU223C500H01 1
5080-193463-11 COVER(X),IRAS BU224D499H01 3
5080-193451-11 COVER(T),IRAS BU141A436H01 1
5080-193452-11 COVER(T),UNDER BU223C501H01 1
5080-192602-11 BELT(X1),IRAS BU224D519H01 1
5080-192528-11 MOTOR,SERVO IRAS X #01 BU160C725G61 1
5080-192604-11 BELT(X2),IRAS BU224D521H01 1
5080-193444-11 BLOCK(X),IRAS BU224D508H01 1
5080-192603-11 BELT(X3),IRAS BU224D520H01 1
5080-192606-11 BELT(T),IRAS BU224D522H02 1
5080-192529-11 MOTOR,SERVO IRAS T #01 BU160C728G61 1
5080-192538-11 DC FAN,IRAS T #01 BU149C913G51 1
5080-192539-11 DC FAN,IRAS T #02 BU149C913G52 1
5080-192614-11 BRACKET(X),IRAS BU224D500H01 1
5080-192618-11 BRACKET(T),IRAS BU224D517H01 1
5080-192521-11 PHOTOSENSOR,IRAS #01 BU224D530H01 2
5080-193445-11 BRACKET(X),FRONT BU160A849G51 1
5080-192820-11 PHOTOSENSOR,IRAS X #01 BU149C948G61 1
5080-192821-11 PHOTOSENSOR,IRAS X #01 BU149C948G62 1
5080-194303-11 HANDLE(T),IRAS P938K000P88 1
5080-192874-12 X-AXIS,IRAS BU160A797G52 1
Assembly Part No: 5087-403676-11, IRAS (LITHIUS IPL), Z-AXIS
5080-193457-11 COVER(Z),UPPER BU223C453H01 1
5080-193458-11 COVER(Z),MIDDLE BU224D400H01 1
5080-192526-11 MOTOR,SERVO IRAS Z #01 BU160C727G51 1
5080-193447-11 DUCT(Z),IRAS BU160B851G51 1
5080-192540-11 DC FAN,IRAS Z #01 BU149C913G53 1
5080-193462-11 BRACKET(Z),IRAS BU224D497H01 1
5080-192521-11 PHOTOSENSOR,IRAS #01 BU224D530H01 1
5080-193459-11 COVER(Z),BELT BU224D108H02 2
5080-193454-11 COVER(Z),FRONT BU223C505H01 1
5080-193455-11 COVER(Z),LEFT BU223C490H01 1
5080-193456-11 COVER(Z),RIGHT BU223C491H01 1
5080-193453-11 BELT(Z),SEAL BU224D237H01 2
5080-192865-11 CABLE ASSY,IRAS Z #01 BU160C723G61 1
Assembly Part No: 5087-403677-11, IRAS (LITHIUS IPL),Y-AXIS
5080-193461-11 COVER(L),IRAS BU223C496H01 1
5080-192600-11 PCB,I/F IRAS BASE #01 TU817A078G64 1
5080-192612-11 COVER(Y),IRAS BU223C466H01 1
5080-192525-11 MOTOR,SERVO IRAS Y #01 BU160C726G51 1
5080-193446-11 BLOCK(Y),STOPPER BU160C850G51 1
5080-192615-11 BRACKET(Y),IRAS BU224D402H01 1
5080-192521-11 PHOTOSENSOR,IRAS #01 BU224D530H01 1
5080-192611-11 COVER(Y),LONG IRAS BU223C288H02 1
5080-193460-11 COVER(L),LONG BU223C495H01 1
5080-192858-11 CABLE ASSY,IRAS Y #01 BU160C722G61 1
Assembly Part No: 5087-403678-11, IRAS (LITHIUS IPL), CABLE
5080-192833-11 CABLE ASSY,IRAS MTR-X #02 BU229A002G61 1
5080-192837-11 CABLE ASSY,IRAS ENC-X #02 BU229A002G62 1
5080-192851-11 CABLE ASSY,IRAS MTR-T #02 BU229A002G63 1
5080-192854-11 CABLE ASSY,IRAS ENC-T #02 BU229A002G64 1
5080-192845-11 CABLE ASSY,IRAS MTR-Z #02 BU229A002G65 1
5080-192848-11 CABLE ASSY,IRAS ENC-Z #02 BU229A002G66 1
5080-192841-11 CABLE ASSY,IRAS MTR-Y #02 BU229A002G67 1
5080-192843-11 CABLE ASSY,IRAS ENC-Y #02 BU229A002G68 1
5080-192857-11 CABLE ASSY,IRAS BRK #02 BU229A002G69 1
5080-192827-11 CABLE ASSY,IRAS GND #02 BU229A002G71 1
5080-192828-11 CABLE ASSY,IRAS GND #03 BU229A002G72 1
5080-192859-11 CABLE ASSY,IRAS Y #02 BU229A002G81 1
5080-192860-11 CABLE ASSY,IRAS Y #03 BU229A002G82 1
5080-192861-11 CABLE ASSY,IRAS Y #04 BU229A002G83 1
5080-192862-11 CABLE ASSY,IRAS Y #05 BU229A002G84 1
5080-192863-11 CABLE ASSY,IRAS Y #06 BU229A002G85 1
5080-192864-11 CABLE ASSY,IRAS Y #07 BU229A002G86 1
5080-192834-11 CABLE ASSY,IRAS MTR-X #03 BU229A003G61 1
5080-192838-11 CABLE ASSY,IRAS ENC-X #03 BU229A003G62 1
5080-192852-11 CABLE ASSY,IRAS MTR-T #03 BU229A003G63 1
5080-192855-11 CABLE ASSY,IRAS ENC-T #03 BU229A003G64 1
5080-192846-11 CABLE ASSY,IRAS MTR-Z #03 BU229A003G65 1
5080-192849-11 CABLE ASSY,IRAS ENC-Z #03 BU229A003G66 1
5080-192829-11 CABLE ASSY,IRAS GND #04 BU229A003G71 1
5080-192830-11 CABLE ASSY,IRAS GND #05 BU229A003G72 1
5080-192866-11 CABLE ASSY,IRAS Z #02 BU229A003G81 1
5080-192867-11 CABLE ASSY,IRAS Z #03 BU229A003G82 1
5080-192868-11 CABLE ASSY,IRAS Z #04 BU229A003G83 1
5080-192869-11 CABLE ASSY,IRAS Z #05 BU229A003G84 1
5080-192870-11 CABLE ASSY,IRAS Z #06 BU229A003G85 1
5080-192835-11 CABLE ASSY,IRAS MTR-X #04 BU229A004G61 1
5080-192839-11 CABLE ASSY,IRAS ENC-X #04 BU229A004G62 1
5080-192826-11 CABLE ASSY,IRAS GND #01 BU229A004G71 1
5080-192871-11 CABLE ASSY,IRAS T #01 BU229A004G81 1
5080-192872-11 CABLE ASSY,IRAS T #02 BU229A004G82 1
5080-192873-11 CABLE ASSY,IRAS T #03 BU229A004G83 1
5080-192832-11 CABLE ASSY,IRAS MTR-X #01 BU229A001G61 1
5080-192836-11 CABLE ASSY,IRAS ENC-X #01 BU229A001G62 1
5080-192850-11 CABLE ASSY,IRAS MTR-T #01 BU229A001G63 1
5080-192853-11 CABLE ASSY,IRAS ENC-T #01 BU229A001G64 1
5080-192844-11 CABLE ASSY,IRAS MTR-Z #01 BU229A001G65 1
5080-192847-11 CABLE ASSY,IRAS ENC-Z #01 BU229A001G66 1
5080-192840-11 CABLE ASSY,IRAS MTR-Y #01 BU229A001G67 1
5080-192842-11 CABLE ASSY,IRAS ENC-Y #01 BU229A001G68 1
5080-192856-11 CABLE ASSY,IRAS BRK #01 BU229A001G69 1
5080-192831-11 CABLE ASSY,IRAS GND #06 BU229A001G71 1
5080-192583-11 CABLE ASSY,IRAS #01 BKO-FA0709H05 1
5080-192542-11 AC CABLE,IRAS CTRL-X #01 BU283C342G51 1
5080-192544-11 AC CABLE,IRAS CTRL-Y #01 BU283C342G52 1
5080-192546-11 AC CABLE,IRAS CTRL-Z #01 BU283C342G53 1
5080-192548-11 AC CABLE,IRAS CTRL-T #01 BU283C342G54 1
5080-192550-11 AC CABLE,IRAS #02 BU284D408G61 1
Assembly Part No: 5087-403679-12, IRAS (LITHIUS IPL), DRIVER
5080-193486-11 MOTOR DRIVER,IRAS X #02 BU160C796G61 1
5080-193487-11 MOTOR DRIVER,IRAS Y #02 BU160C796G62 1
5080-193488-11 MOTOR DRIVER,IRAS Z #02 BU160C796G63 1
5080-193489-11 MOTOR DRIVER,IRAS T #02 BU160C796G64 1
5080-192601-11 #CAPACITOR,IRAS #01 MR-J2S-BC001-QE 1
Assembly Part No: 5085-405392-12, FORK ASSY, IRAS
5080-191950-11 FORK,IRAS K8757-01-0 1
5004-400012-11 BLOCK(1),FRONT IRAS 1
5004-400009-11 BLOCK(2),FRONT IRAS 1
5010-406677-11 BLOCK,IRA CENTER 1
This item is working surplus. The physical condition is good, but there are signs of previous use and handling.
Sale Details
-
Item Condition: Working, 90 Day Warranty
-
Estimated Packed Shipping Dimensions: L x W x H = 72"x36"x104" @ 1400 lbs.; Requires Freight Shipping
-
Shipping Terms: All Domestic and International shipping quotes and/or fees are subject to change due to packaging requirements, custom packing, transport rate fluctuations, and supply chain demands. We will contact you regarding any shipments that require or incur additional after purchase packing fees or rate changes.
-
Only items pictured are included: If a part is not pictured, or mentioned above, then it is not included in the sale. Pictured test equipment is not included or available for sale.
-
For items with multiple quantities: The pictured item is not necessarily the one that will be sent. Serial numbers or country of manufacture may vary.
- New, Refurbished, and Working items are sold with a 90-Day Satisfaction Guarantee
