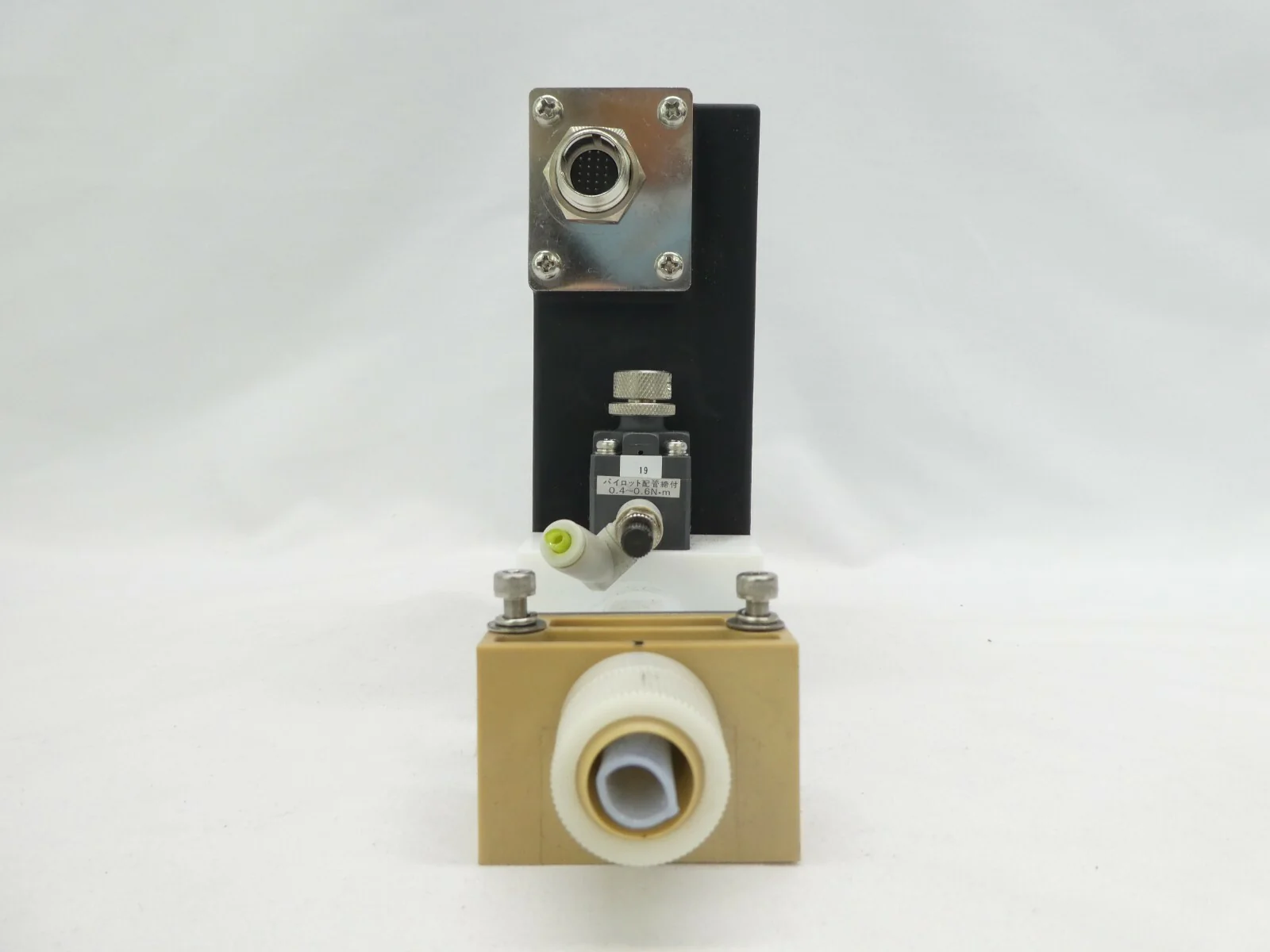

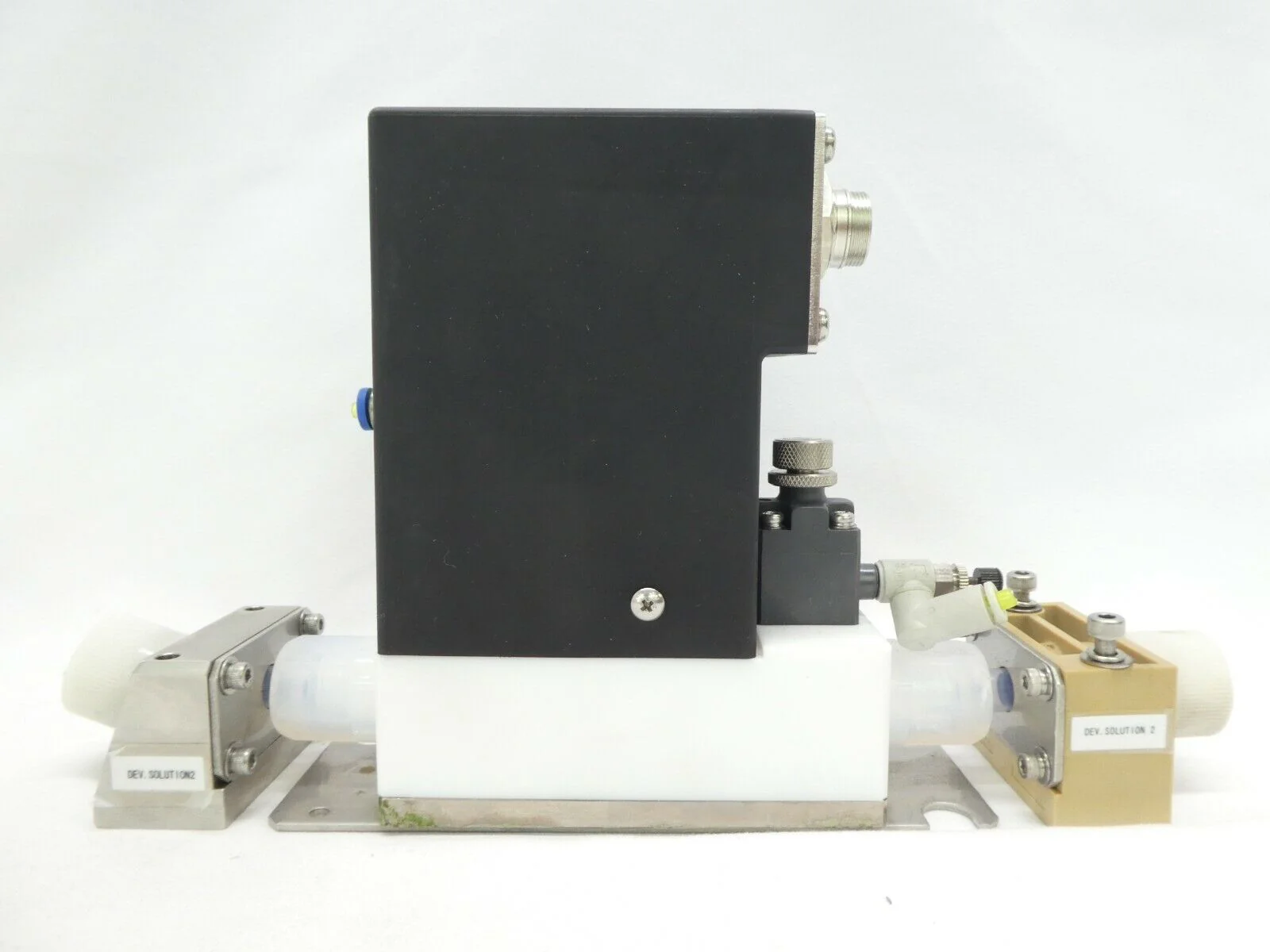

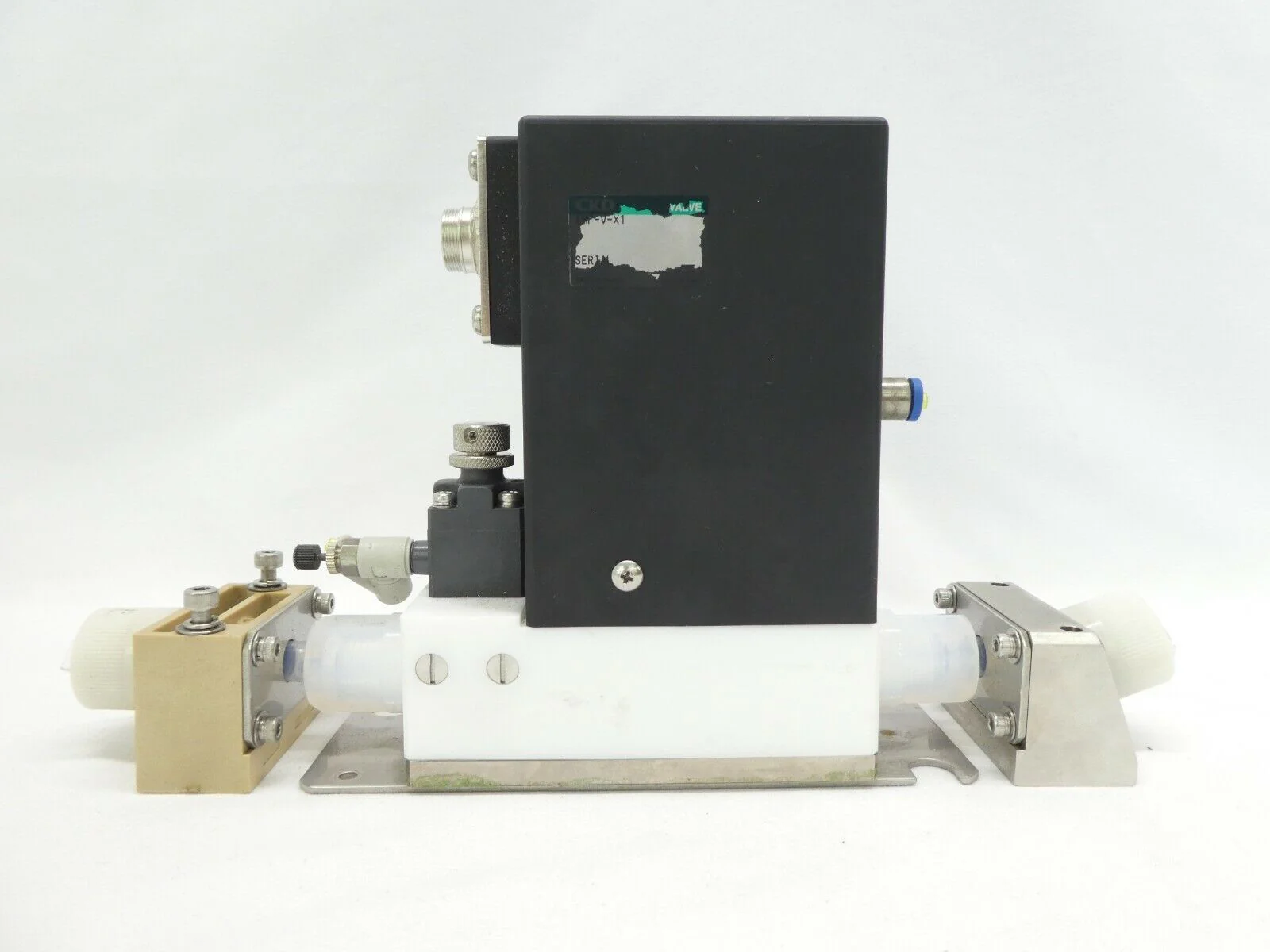

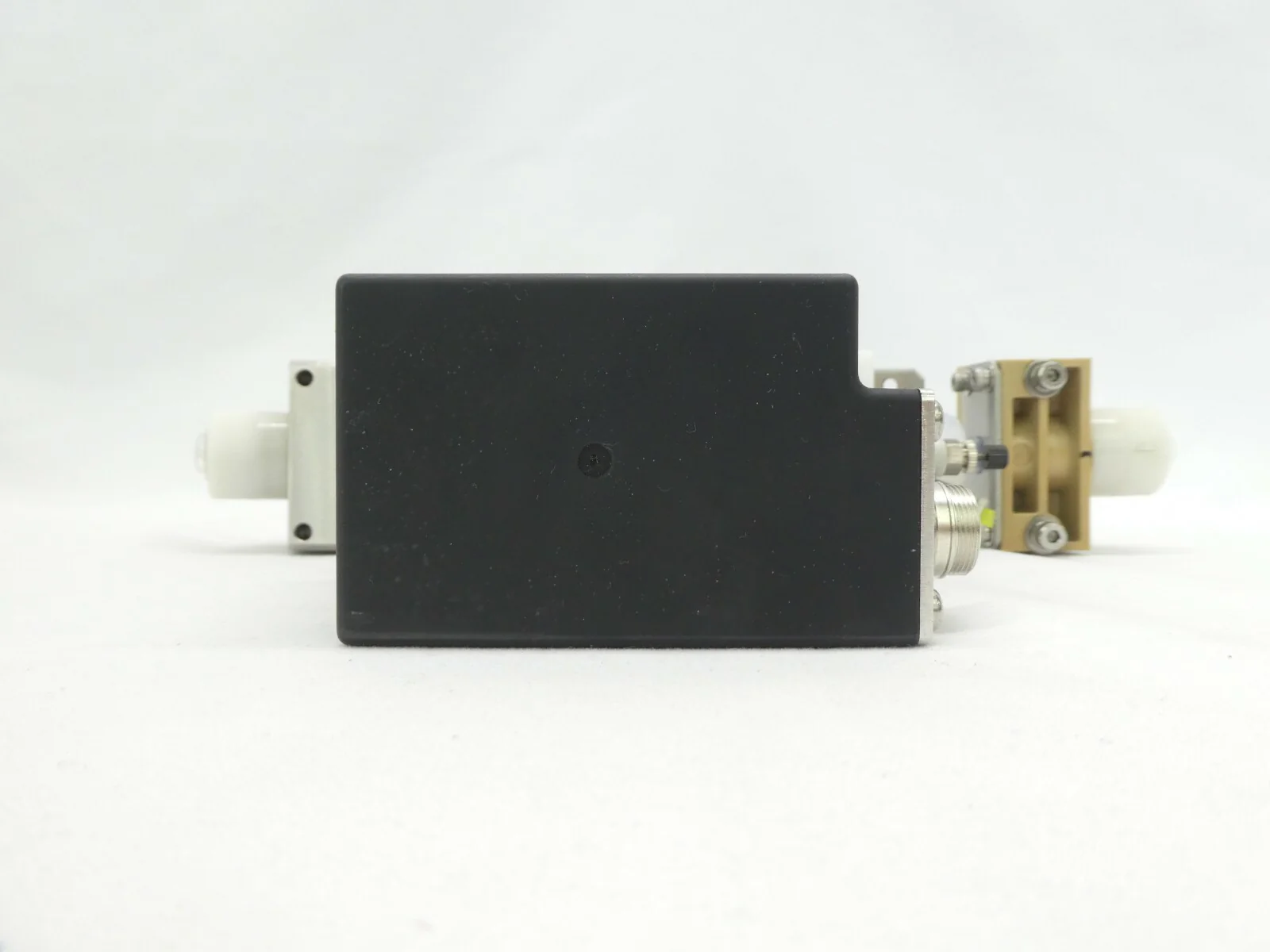

TEL Tokyo Electron 5087-400487-15 Valve Assembly DEV.SOLUTION2 Lithius Complete

TEL Tokyo Electron 5087-400487-15 Valve Assembly DEV.SOLUTION2 Lithius Complete

TEL Tokyo Electron 5087-400487-15 Valve Assembly DEV.SOLUTION2 Lithius Complete

Inventory # A-17664

  • Part No: 5087-400487-15
  • Model No: VALVE ASSY (2NDAMF)
  • DEV.SOLUTION2
  • Develop Process Station, DEV ASSY
  • Removed from a TEL Tokyo Electron Clean Track Lithius System
  • Made in Japan

    Assembly Part No: 5087-400486-15, VALVE ASSY(AMF)

  • 5004-400006-11 NUT(15A) (509510027011 1
  • 5004-100010-11 JOINT (509510063511 1
  • 5010-201961-12 BASE(AMF) 1
  • 5010-402583-11 COVER 1
  • 5010-403084-11 PLATE 1
  • 027-002206-1 O-RING BUTYL P-14 BLACK 2
  • 027-100566-1 O-RING BUTYL P-9 BLACK 1
  • 5012-000089-11 AIR-OPERATED VALVE AMF-V-X1 1

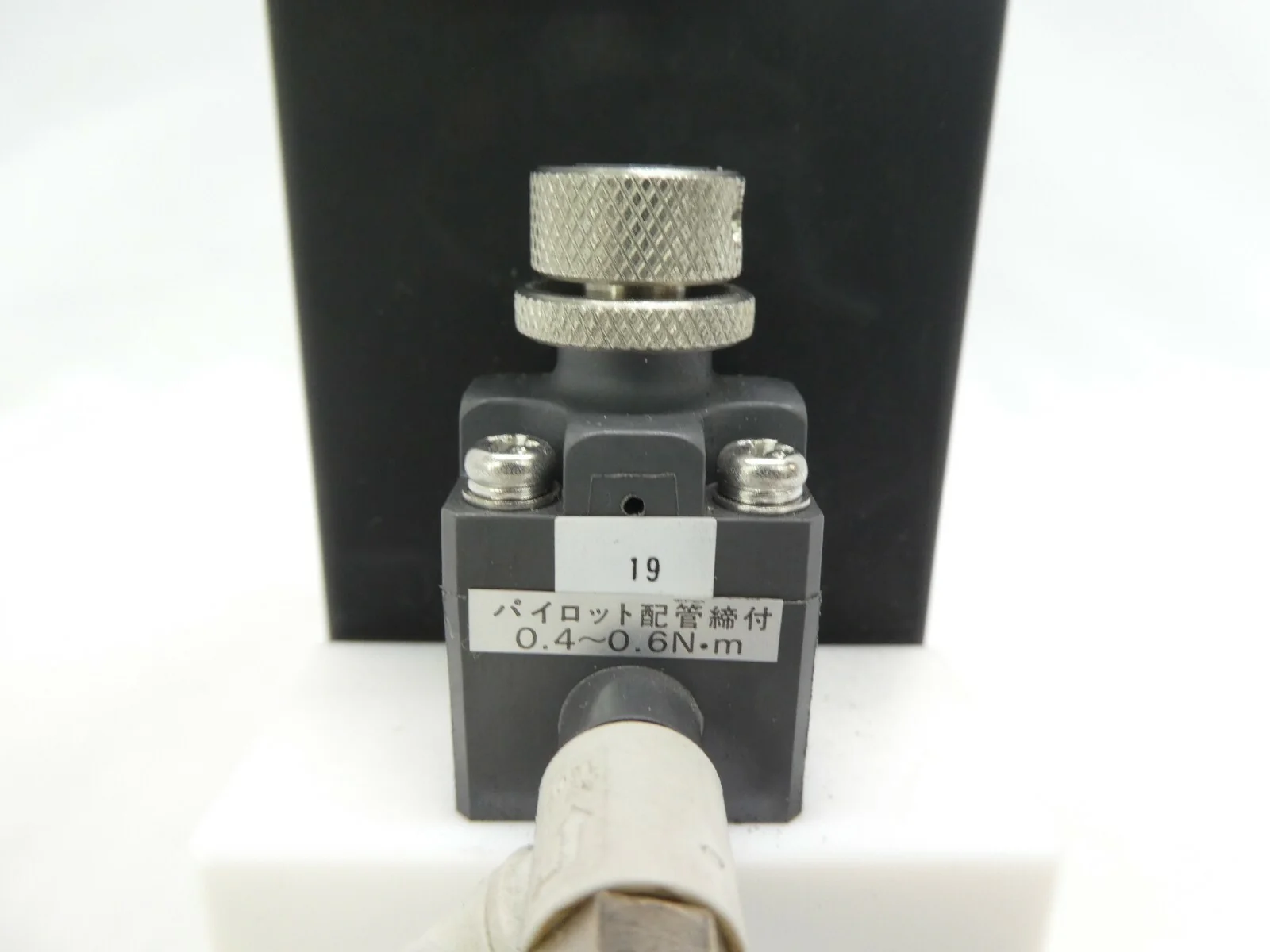

  • 024-014711-1 SPEED CONTROLLER AS1301FM-M5-04 1
  • 028-006338-1 FITTING,TUBE EC4-M5A-TR 1
  • 028-001390-1 FITTING,TUBE EYB6-6-TR 1
  • 028-005336-1 FITTING,TUBE UR6-4M 1
  • 017-002107-1 TUBE PN-4-4*2.5 YELLOW 4
  • 020-000049-1 CAP SCREW M4*40 SUS304 2
  • 032-000011-1 FLAT WASHER M4 SUS304 POLISHED ROUND 2
  • 032-000058-1 SPRING WASHER M4 SUS304 2
  • 020-000821-1 CAP SCREW M3*6 SUS304 W/SPR&FLAT WASHER 6
  • 020-000177-1 FLAT COUNTERSUNK HEAD SCREW M3*8 SUS304 4
  • 020-002913-1 CAP SCREW M4*8 SUS304 W/SPR & FLAT WASHER 2
  • 5041-000159-11 CABLE ASSY AMFV #01 1

    This TEL Tokyo Electron 5087-400486-15 Dev.Solution 2 Valve is used working surplus. Includes interface cable. The physical condition is good, but there are signs of previous use and handling. Removed from a TEL Tokyo Electron Clean Track Lithius 300mm System.

    • Sale Details

    • Item Condition: Used Working, 90 Day Warranty
    • Estimated Packed Shipping Dimensions: L x W x H = 14"x14"x14" @ 9 lbs.
    • Only items pictured are included: If a part is not pictured, or mentioned above, then it is not included in the sale. Pictured test equipment is not included or available for sale.
    • For items with multiple quantities: The pictured item is not necessarily the one that will be sent. Serial numbers or country of manufacture may vary.
    • Items are sold with a 90-Day Satisfaction Guarantee

      Lister 7


    Listed with ExportYourStore.com
    $1,602.00
